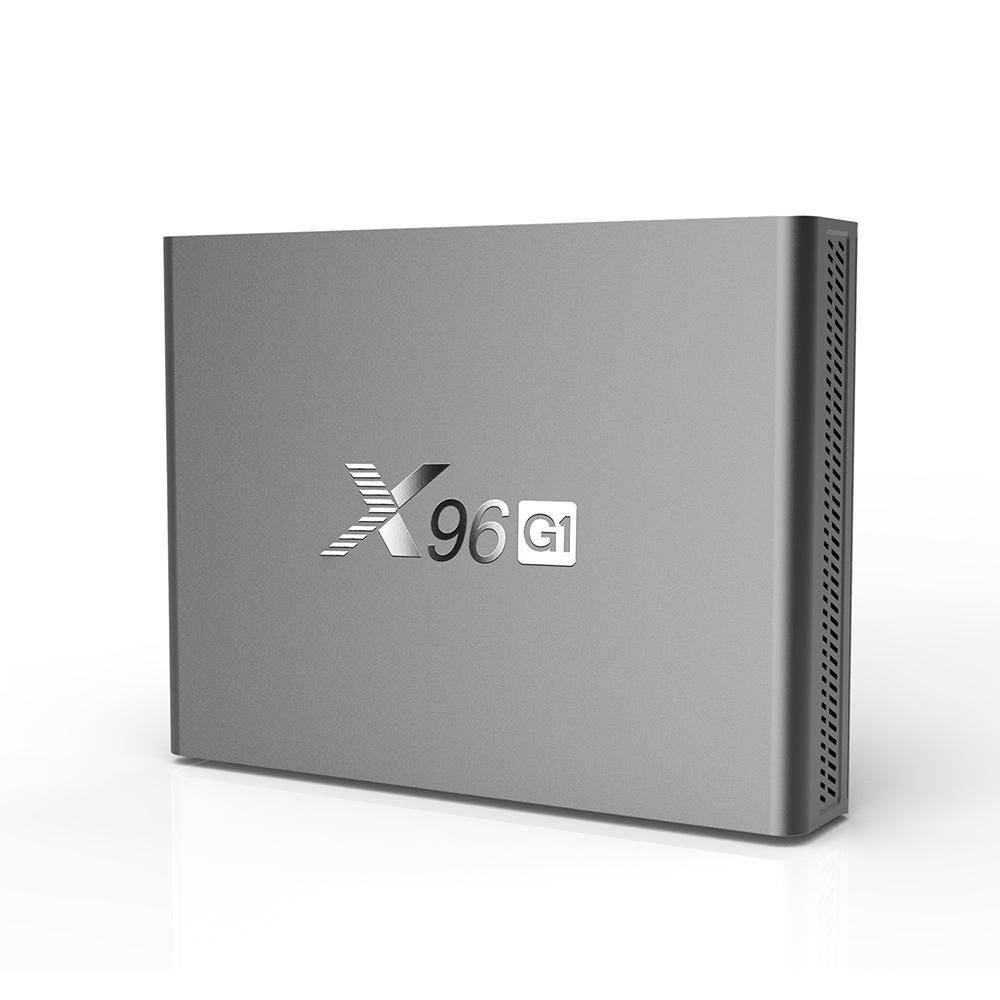

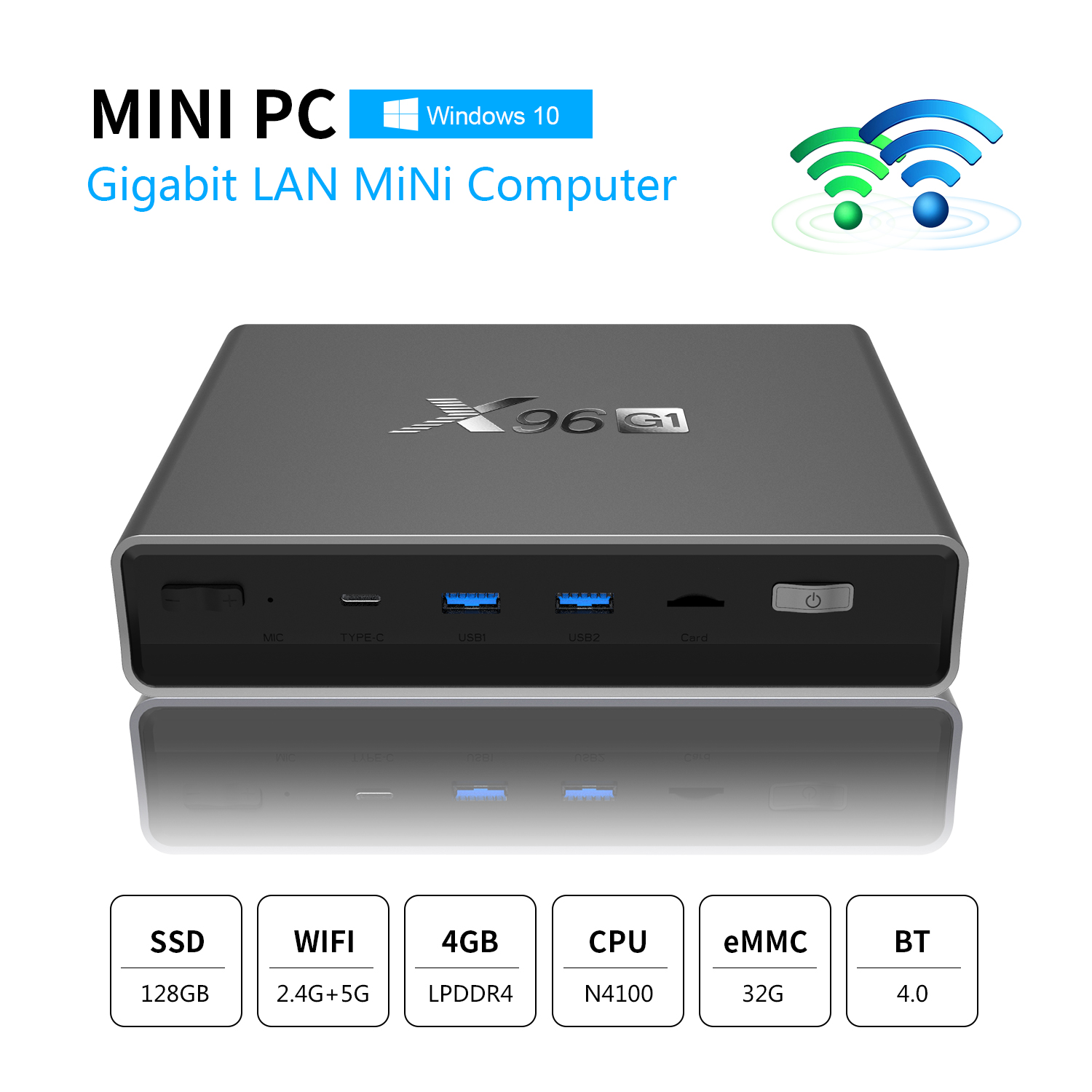

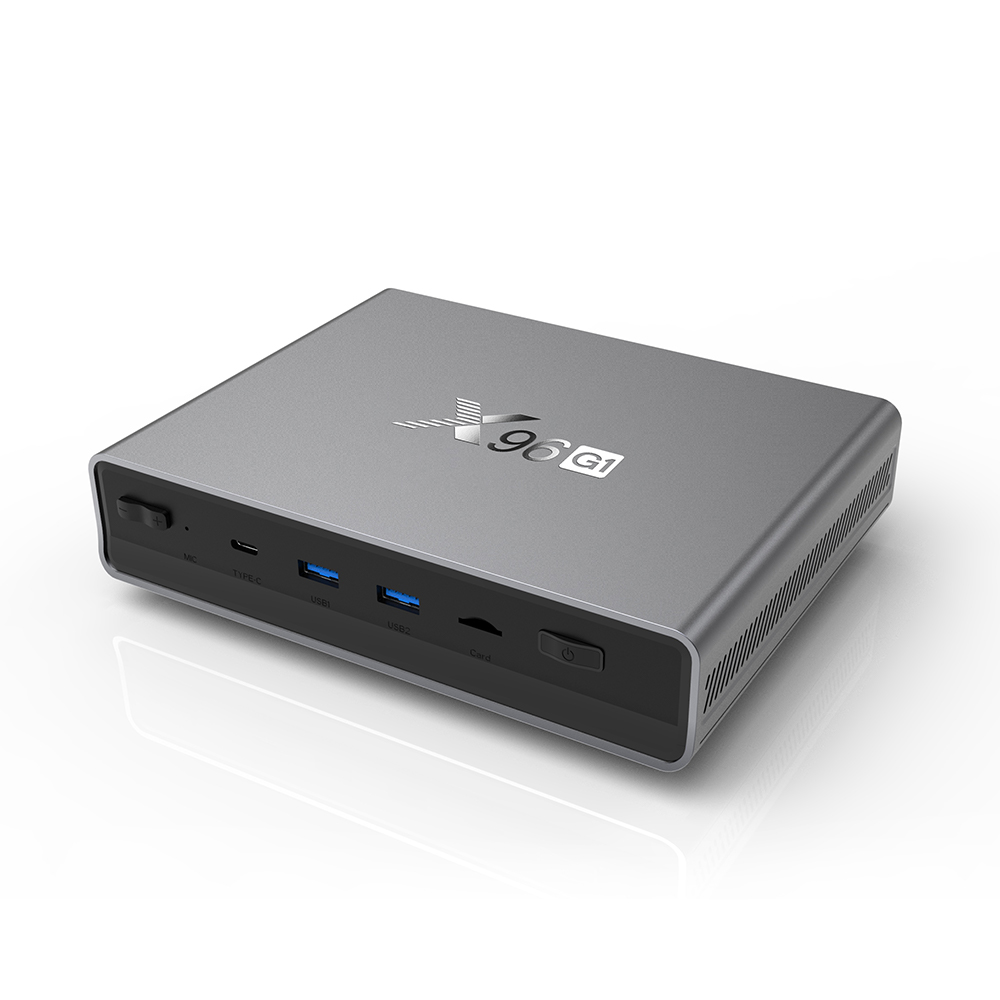

X96 G1 Mini Pc

X96 G1

Features：

Platform：Gemini Lake
CPU Processor Type：Intel® Gemini Lake N4100: up to 2.4GHz
Quad Core (4C/4T)
BGA 24mm x 25mm x 1.44mm"
Process 14nm
L2 Cache Supports Intel® Burst Technology Supports 4MB of L2 Cache
Memory Technology：LPDDR4
Memory：4GB
Display LCD Type：N/A
touch panel：N/A
Communication Port Wireless LAN/Bluetooth：Intel Stone Peak AC3165 802.11 a/b/g/n/ac 1x1 MIMO and Bluetooth 4.0 Combo Module
Card Reader Controller：Realtek RTS5170-GR
Storage：eMMC4.5 32GB
SATA HDD(Option)：1TB/2TB
M.2 SSD(Option)--2242 and 2280：128G/256G
Physical Characteristics Dimension(L x W x H)：170.5*134*35mm
Weight(g) TBD
Software Support OS：Window10

X96 G1(N4100)
Platform		Gemini Lake
CPU	Processor Type	Intel® Gemini Lake N4100: up to 2.4GHz Quad Core (4C/4T) BGA 24mm x 25mm x 1.44mm
	Process	14nm
	L2 Cache	Supports Intel® Burst Technology Supports 4MB of L2 Cache
Memory	Technology	LPDDR4
Memory	Memory	4GB
Display	LCD Type	N/A
	touch panel	N/A
Communication Port	Wireless LAN/Bluetooth	Intel Stone Peak AC3165 802.11 a/b/g/n/ac 1x1 MIMO and Bluetooth 4.0 Combo Module
Card Reader	Controller	Realtek RTS5170-GR
	Card Reader	Micro SD

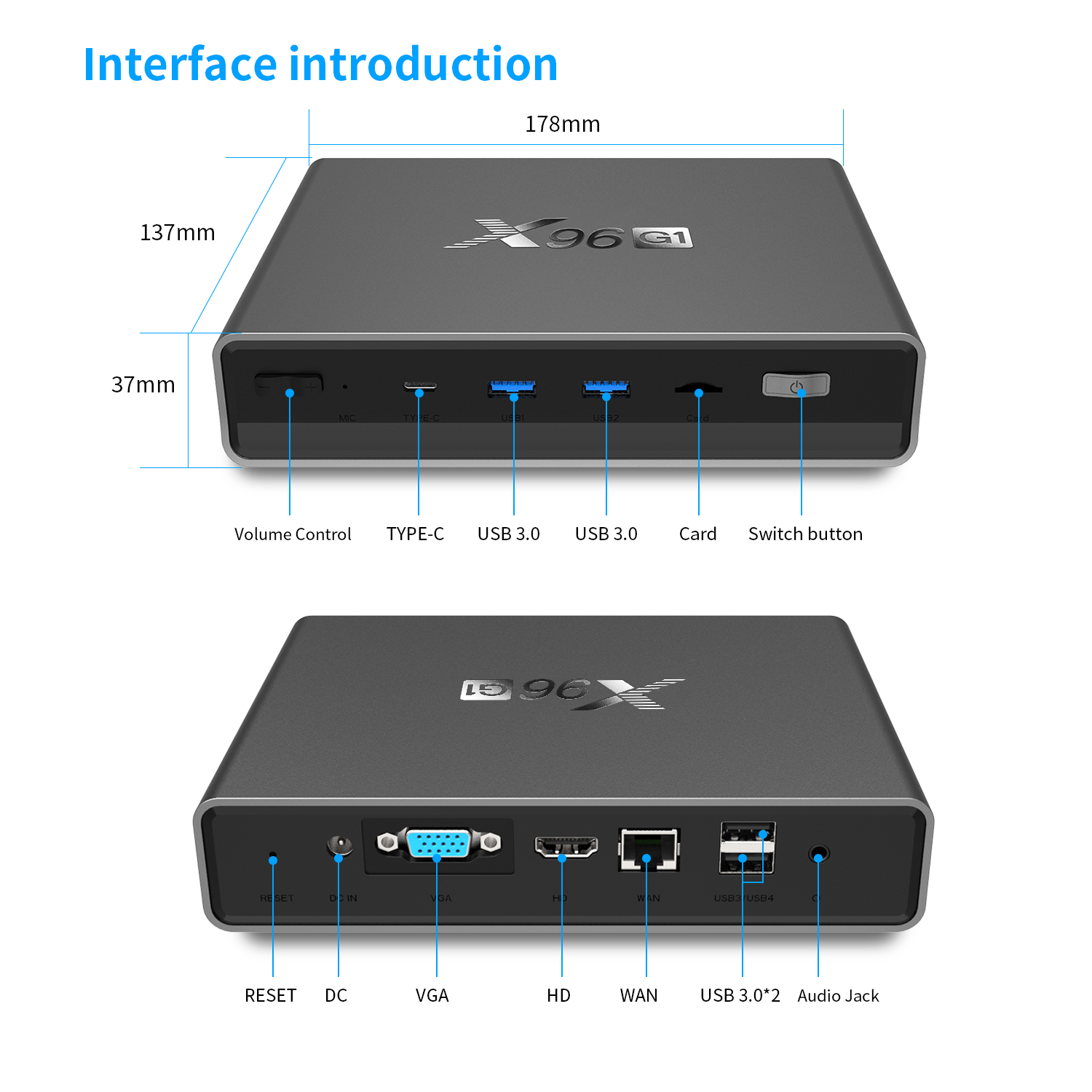

I/O	DC-IN Jack	x1
	USB 2.0(Type A)	x2
	USB 3.0(Type A)	x2
	Type C	x1

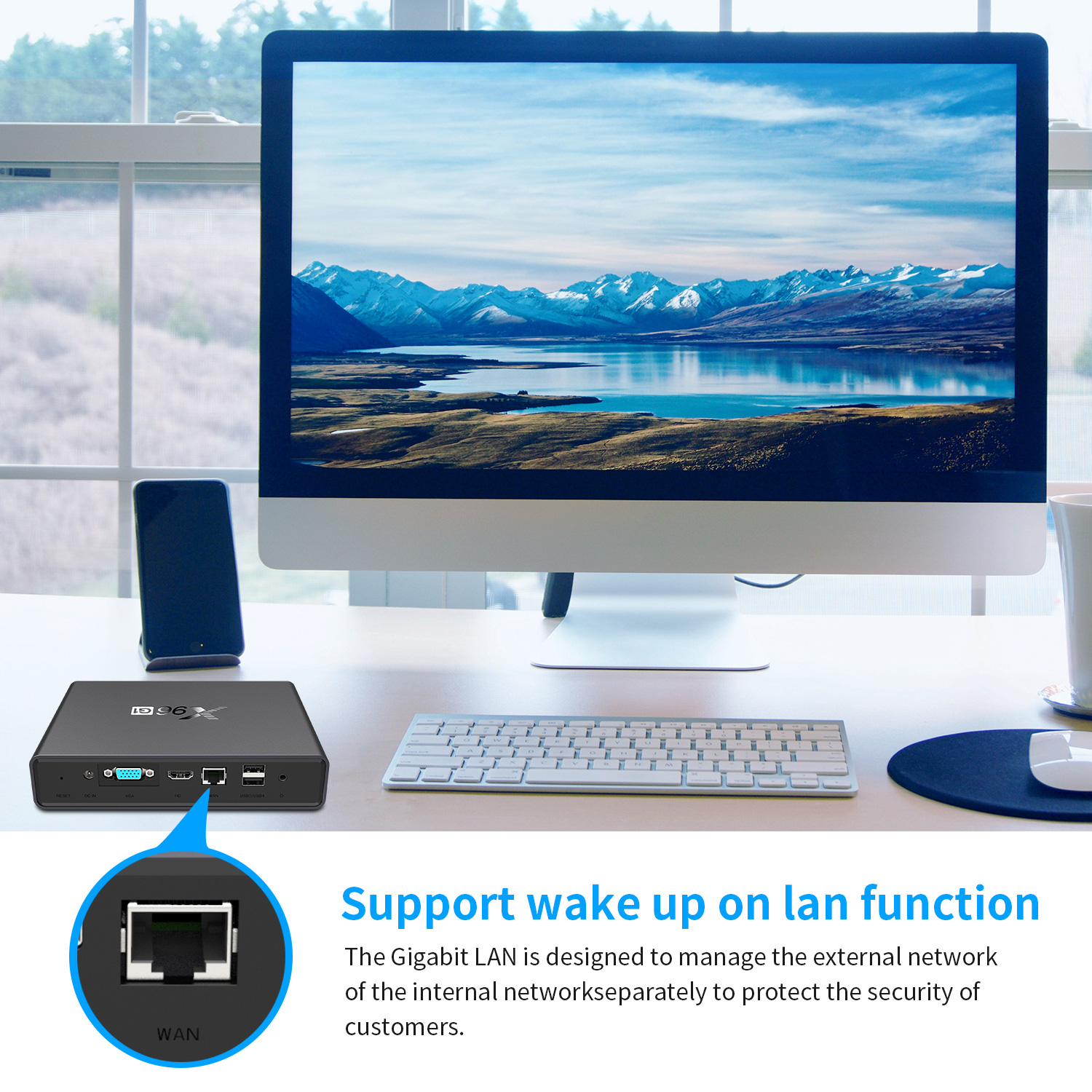

	Giga LAN(RJ45)	x1
	VGA	x1
	HDMI 2.0a	x1
Audio	Audio Jack	x1
Storage	eMMC4.5	32GB
	SATA HDD(Option)	1TB/2TB
	M.2 SSD(Option)--2242 and 2280	128G/256G
Hot Keys	Power Button	x1
	Reset Button	x1
	RF 2.4G Remote (Option)	x1
Power	AC adapter	AC 100~240V, 50/60Hz,12V/2A
Physical Characteristics	Dimension(L x W x H)	170.513435mm
	Weight(g)	TBD
Software	Support OS	Window10
Software	WHQL/CTS

X96 G1 Mini Pc 迷你电脑

CPU	Processor Type	Intel® Gemini Lake N4100: up to 2.5GHz Dual Core (2C/2T) BGA 24mm x 25mm x 1.44mm
Memory	Technology	LPDDR4
Memory	Memory	4GB/8GB
Communication Port	Wireless LAN/Bluetooth	Intel Stone Peak AC3165 802.11 a/b/g/n/ac 1x1 MIMO and BT 4.0 Combo Module
storage	M.2 SSD(Option)--2242 and 2280	128G/256G
	SATA HDD(Option)	1TB/2TB
	eMMC4.5	32G/64G
Power	AC adapter	AC 100~240V, 50/60Hz,12V/2A
Software	Support OS	Windows 10 home
Software	WHQL/CTS

X96 G1

X96 G1(N4100)
